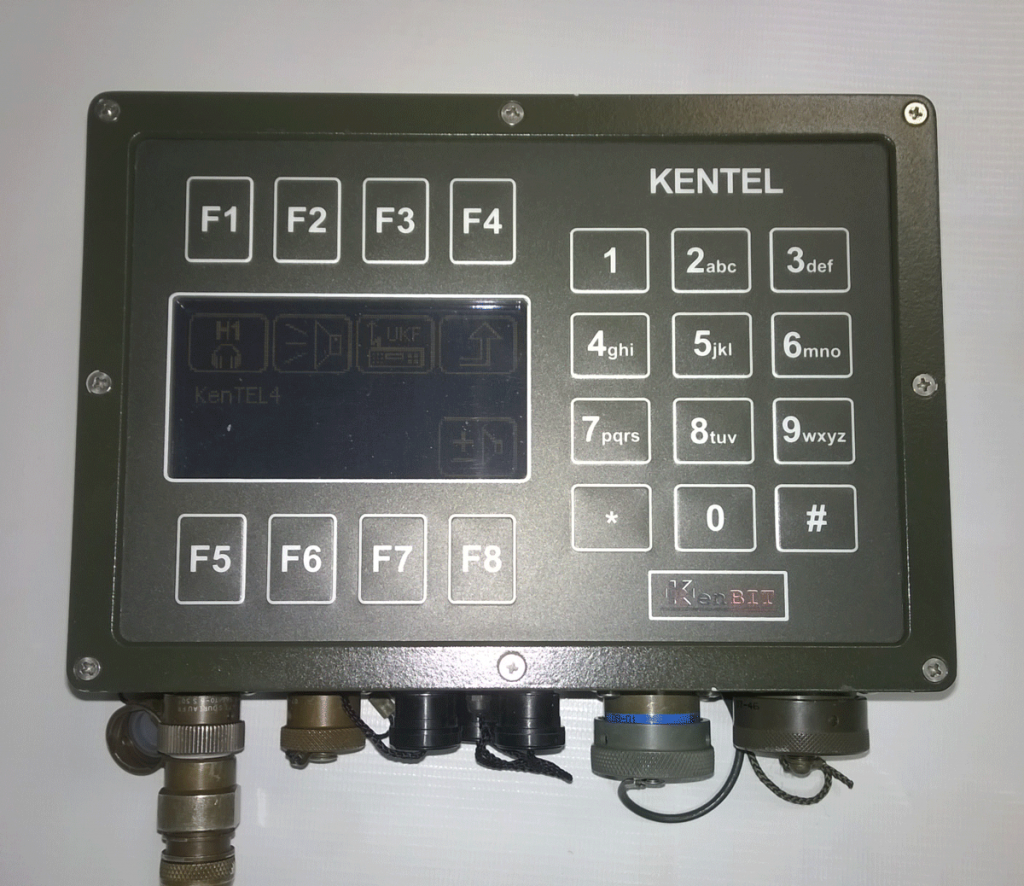

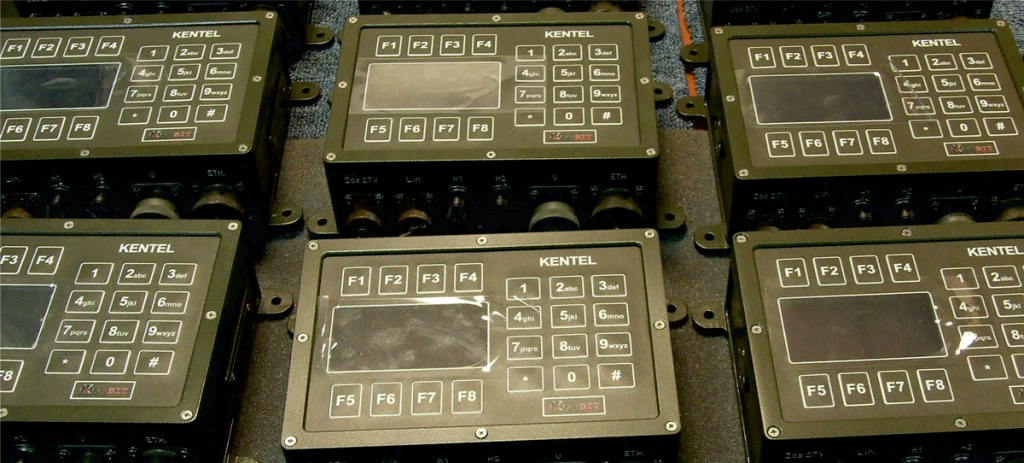

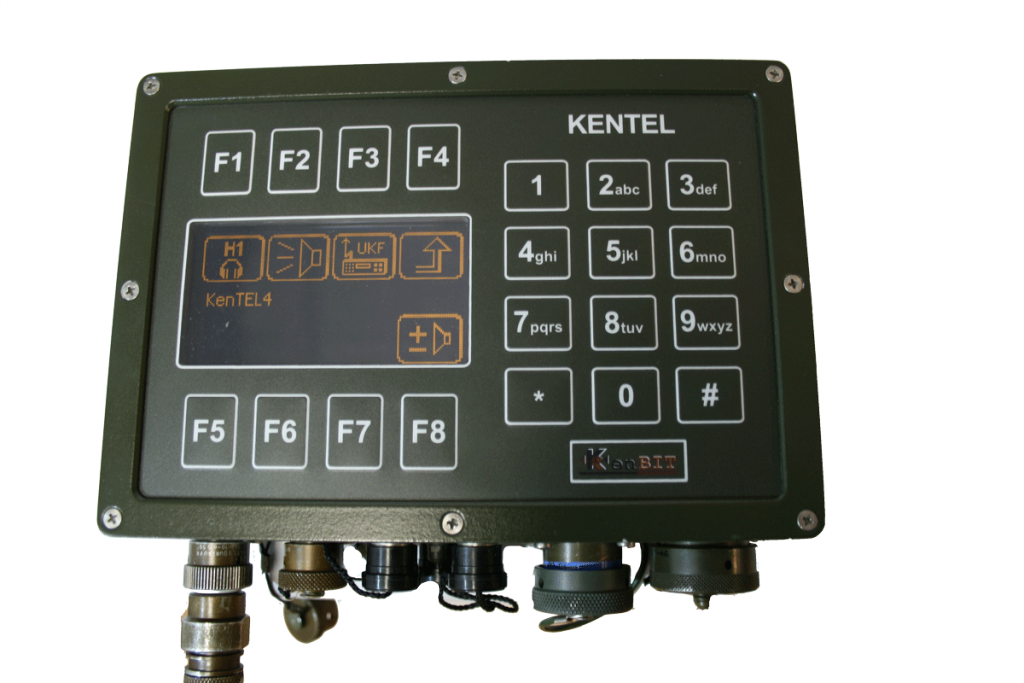

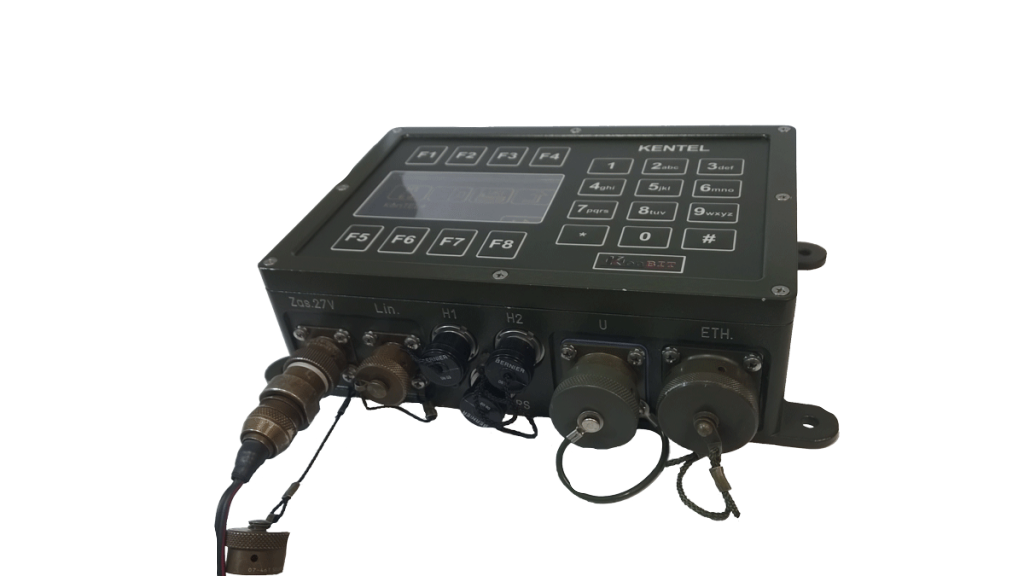

Multifunctional Telephone
KenTEL-1 Multifunction Telephone is designed for operation in digital communication systems, for installation on military vehicles (carriers), in LAN networks, and in field command posts (remote points).
It performs intercom functions and enables connections with STORCZYK system exchanges, VHF and HF radios, and VoIP subscribers.
telephone connections with subscribers of the STORCZYK system |
telephone connections with VoIP terminals in the H.323 standard |
data transmission, from the connected computer, via the STORCZYK system |
circular connection with crew members
point-to-point connections between crew members
voice connections with a subscriber of the HF/VHF radio network
used outside vehicles, as a "remote point" (in additional transport containers)
Alarm and signalling functions |
|---|
displaying to the vehicle's users alarm signals about threats from the vehicle's threat detection system as well as diagnostic messages (sensor statuses) of the vehicle's CAN system |
Interfaces |
|---|
connection of 2 headset (loudspeaker) sets for users |
connection to the vehicle's LAN via Ethernet 10/100 |
cooperation with specialist devices (direction finders, receivers, etc.) |
Requirements met |
|---|
NO-06-A101-A108 for product group N.11-UZ-II-A |
in the transport container, it meets the requirements for products N.14-UZ-II-A |
