Antennas Control System
The "SIROKO" Antenna Control System enables the connection of signals from various antennas to the inputs of measuring and receiving devices such as: measuring and radio receivers, radio direction finders, spectrum analysers or a TV receiver computer card. SIROKO enables the independent set-up of 2 signal paths.
Standardly, there is the possibility of connecting 8 antennas and 4 measuring or receiving devices. This configuration can be adapted to customer needs.
SIROKO can be used in radiocommunication systems where high-frequency signals from various antennas must be switched to appropriate receivers (measuring devices, radio direction finders, etc.) depending on the tasks the system is to perform.
SIROKO has found application in the automatic radio spectrum monitoring system of the Electronic Communications Office.

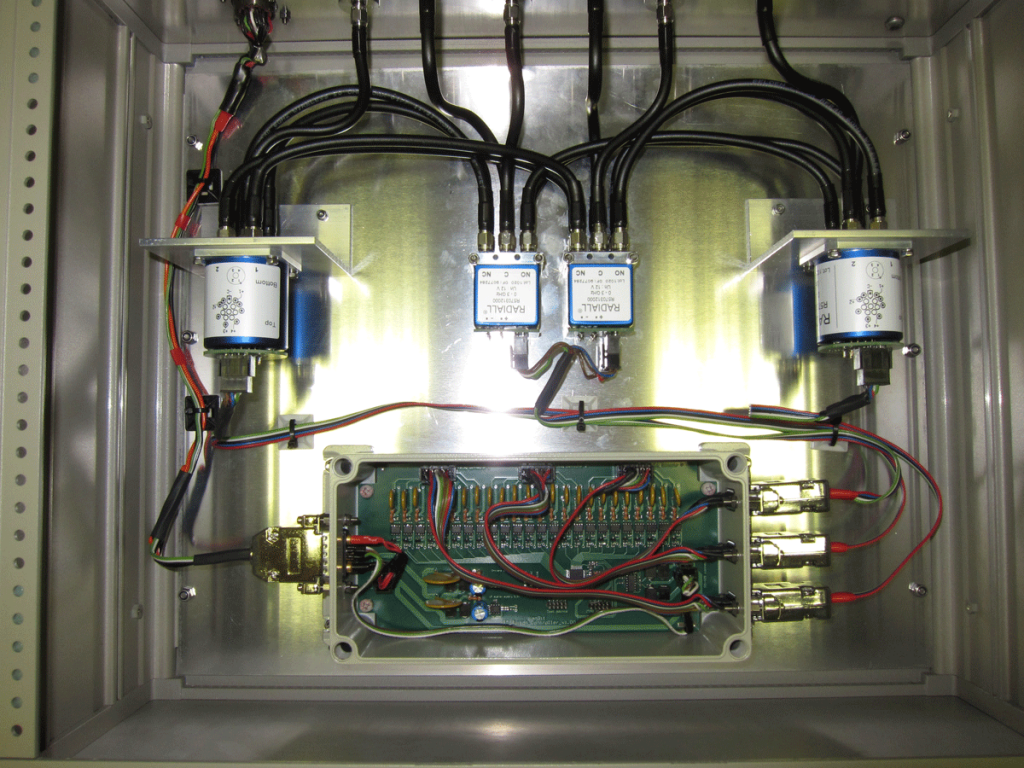

External Switch KZ 8/2
Internal Switch KW 2/4

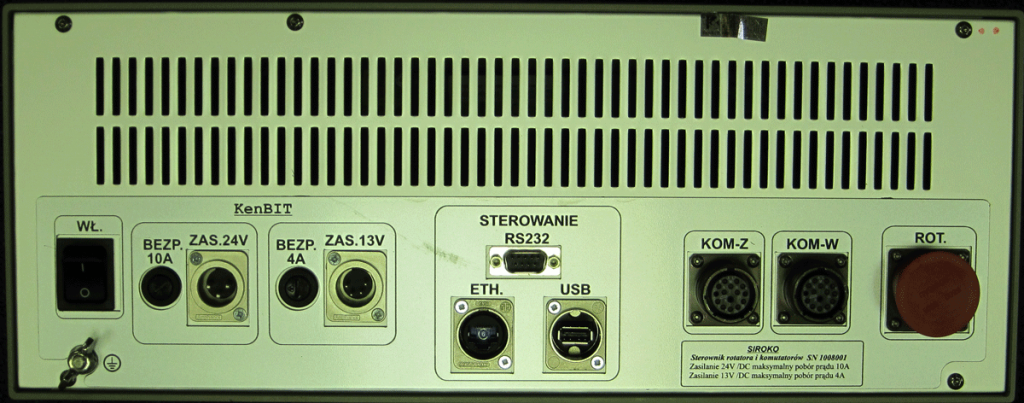

SIROKO system controller
Rotator AR/AE 1049

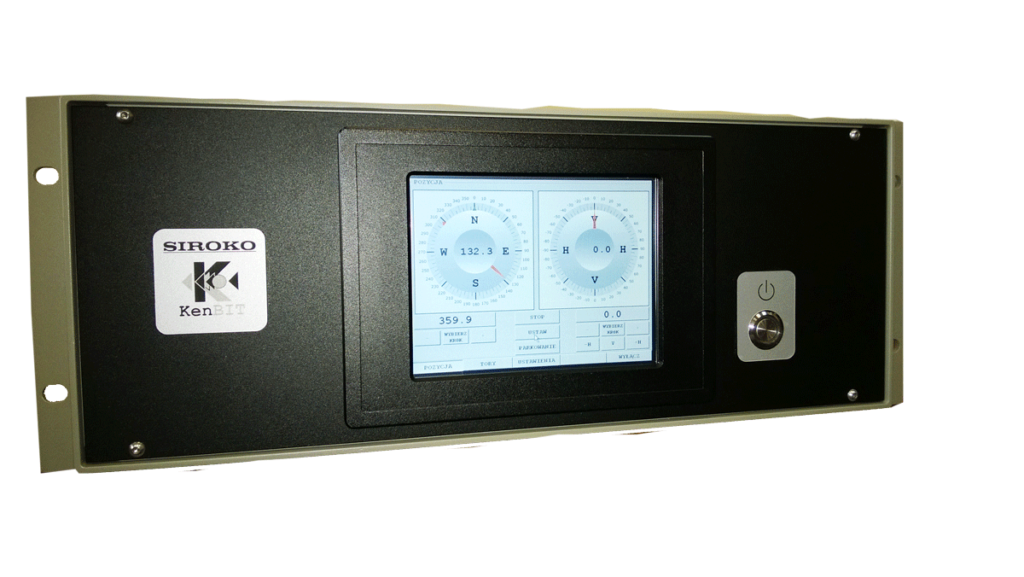

integrated built-in panel on the front wall
remote access implemented through: web browser, RS-232 interface (9600/N/8/1), LAN interface (UDP/IP port 7755)
SIROKO system controller
Rotator AR/AE 1049
Enables switching of high-frequency signals from various antennas to the inputs of measuring and radiocommunication devices
Set-up of 2 independent signal paths
Antenna positioning in azimuth and polarisation change
Local and remote control
RACK cabinet mounting
| Operating frequency range | 0 to 3GHz |
|---|---|
| Number of switched inputs | 8 |
| Number of switched outputs | 4 |
| Impedance | 50 Ohm |
| Maximum switch path attenuation | 1.5dB |
| Antenna connector type | N |
| Switching time (max) | 100ms |
| Number of switching cycles (min) | 1000000 |
| Operating temperature external switch / antenna rotator | from 0°C to 50°C / -35°C to +50°C |
